TacMed™ HELIOS System

Name: TacMed™ HELIOS System
Brand: Tactical Medical Solutions
SKU: MEDTAC0413
Price: 51.0 GBP
Availability: InStock

MSRP: £55.00

Your Price: £51.00

SAVE 7%

Version: Standard

Standard

Active Warming

🔒 Secure Checkout

💳 HSA/FSA

🏛️ Gov/LE

🚚 APO/FPO

SKU: MEDTAC0413

Type: Hypothermia Management

Vendor: Tactical Medical Solutions

PRODUCT INFORMATION

The TacMed™ HELIOS System is an ultra-compact, modular hypothermia prevention system from Tactical Medical Solutions — available in Standard and Active Warming versions. The Standard configuration provides passive two-layer thermal coverage (adjustable top cover and bottom sheet). The Active Warming version adds a Medi-Heat air-activated heating pad providing up to 12 hours of active warming. NSN: 7210-01-614-5894. Packaged: 10 × 7 × 3 inches, 1.5 lbs.

Key Specifications

Specification	Detail
Manufacturer	Tactical Medical Solutions (TacMed)
SKU — Standard	MEDTAC0413
SKU — Active Warming	MEDTAC0414
NSN	7210-01-614-5894
Packaged Dimensions	10 in. × 7 in. × 3 in.
Packaged Weight	1.5 lbs
Heating Pad Size (Active)	9 in. × 13 in.
Active Warming Duration	Up to 12 hours (Medi-Heat air-activated)
Covers Included	2 (top cover + bottom sheet) in Active Warming; System covers in Standard
Blanket Anchors	Included — secure to litter against rotor wash and wind
Triage Card Pocket	High-visibility pocket for STAT/triage cards
Patient Access	Complete casualty access maintained during warming

Product Overview

Hypothermia is a component of the lethal triad in trauma (acidosis, hypothermia, coagulopathy), and its prevention must begin at the point of injury. The TacMed™ HELIOS System was developed specifically to give care providers an ultra-compact, modular, high-performance thermal management solution that maintains patient accessibility — a critical design requirement in tactical scenarios where ongoing treatment, IV access, monitoring, and reassessment must continue while the patient is being warmed.

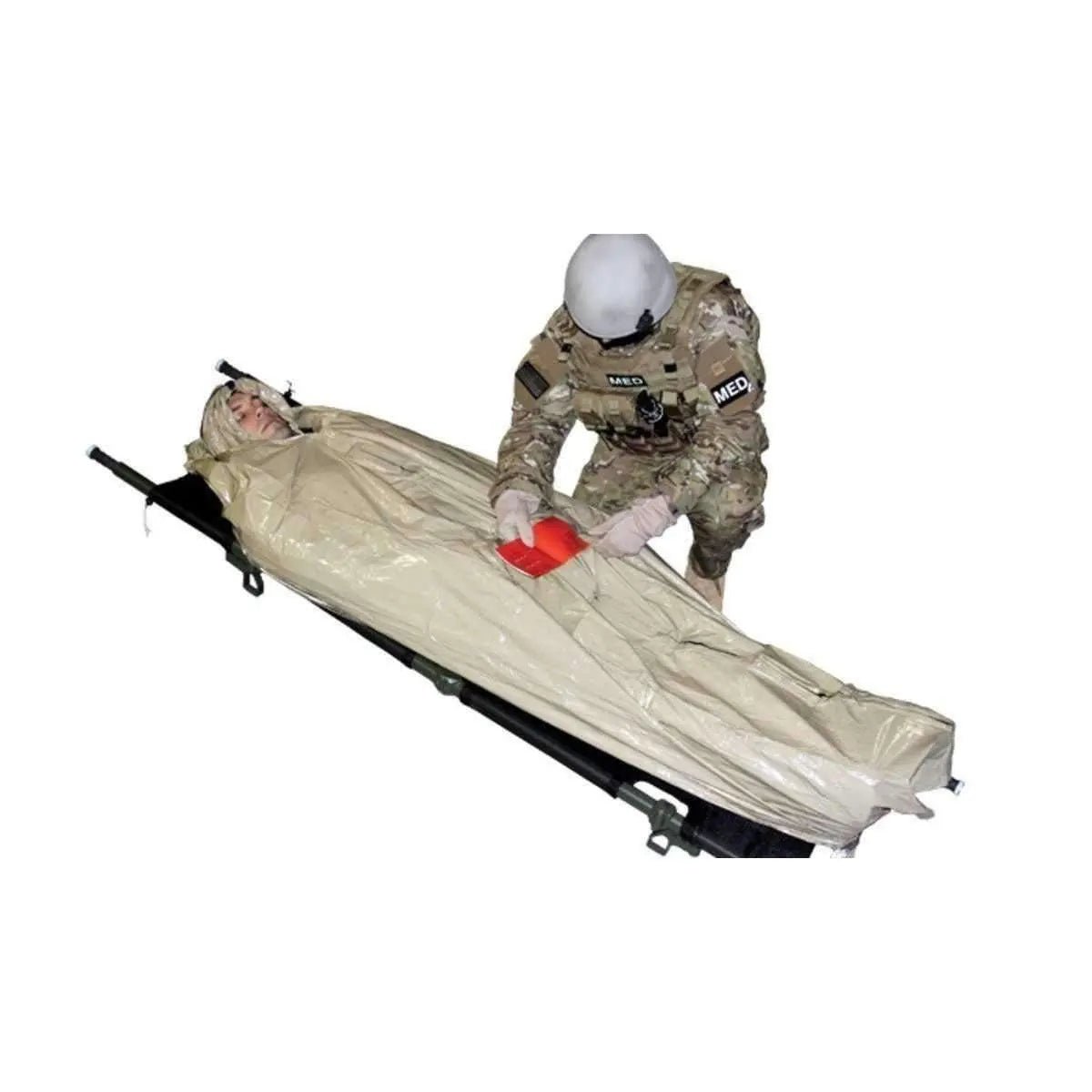

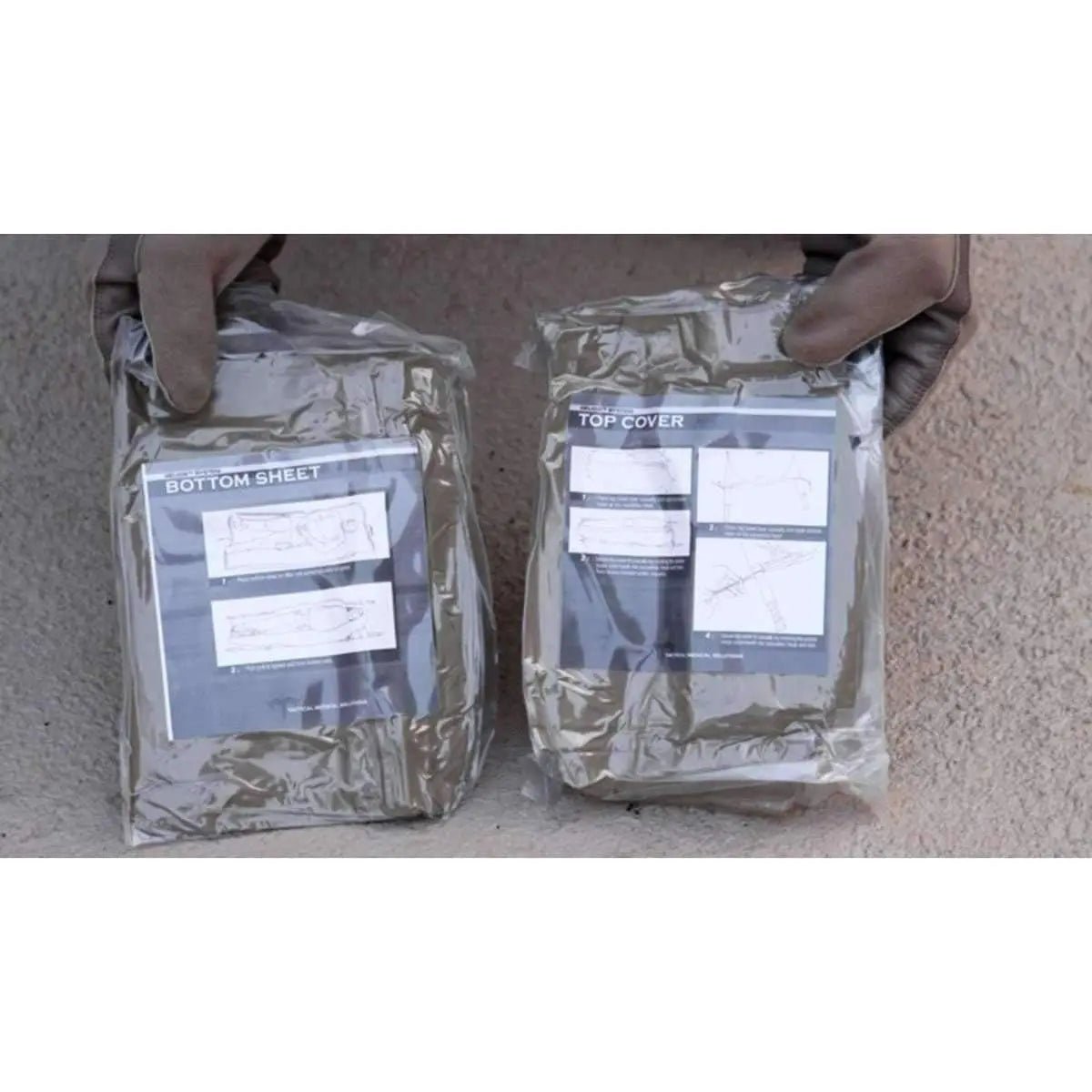

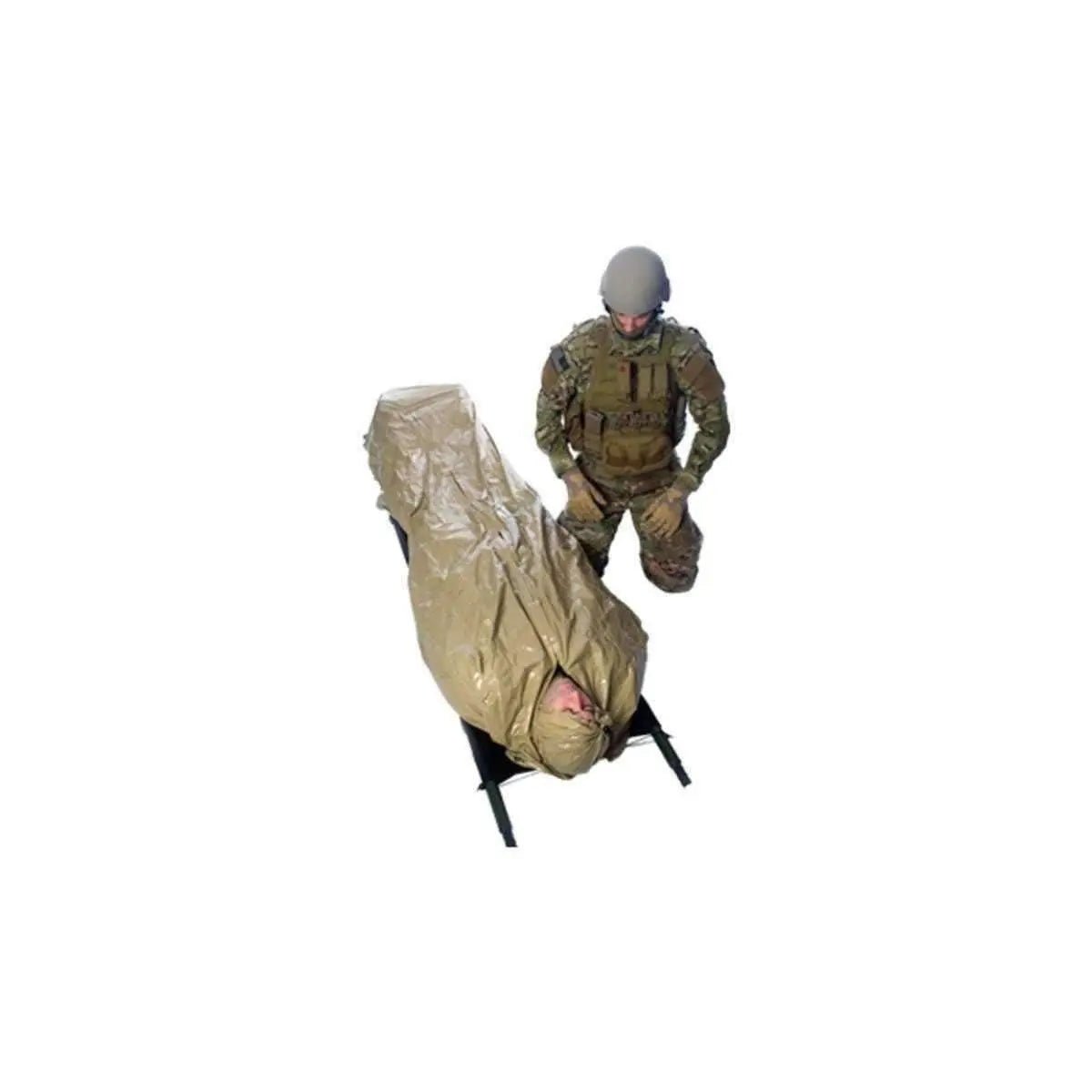

The Standard HELIOS system provides passive two-layer coverage: a bottom sheet and a top cover create an insulating envelope around the casualty, reducing conductive heat loss to the litter surface and reflective heat loss to the environment. The two-piece modular design allows providers to adjust coverage based on the tactical situation — rapid application of the full system when the situation permits, or partial coverage when speed or access constraints require a quicker deployment.

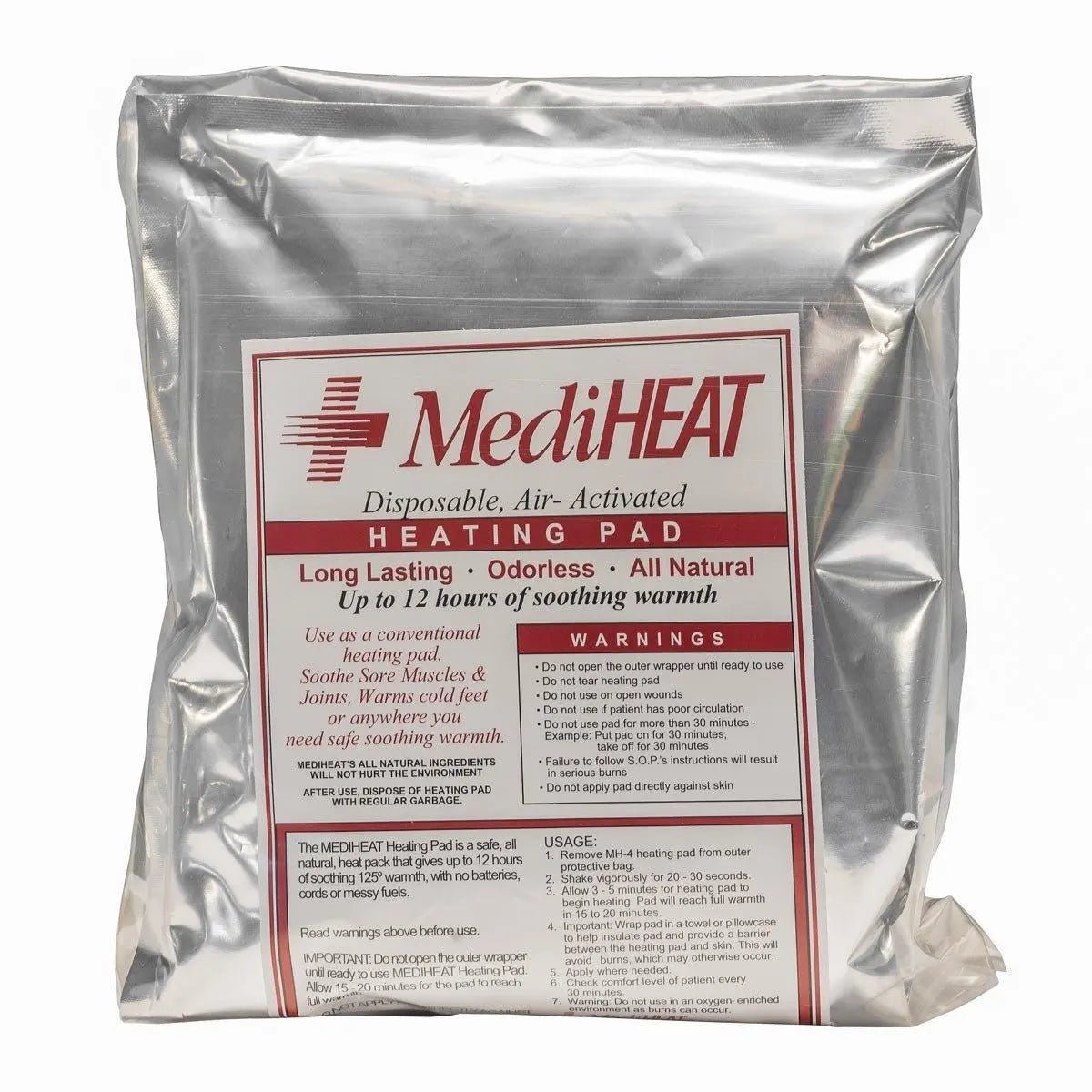

The Active Warming version adds the Medi-Heat air-activated heating pad (9 × 13 inches) — activated by removing it from its oxygen-free packaging, allowing atmospheric oxygen to trigger an exothermic reaction that generates sustained heat for up to 12 hours. This active warming capability is critical for casualties who have already become hypothermic or who are at high risk of hypothermic deterioration during prolonged evacuation. Blanket anchors secure the HELIOS to most litters and prevent displacement from rotor wash or vehicle movement — a feature specifically designed for MEDEVAC and helicopter transport scenarios.

All products sourced from the actual brand manufacturer or authorized master distributors. CoTCCC recommendation status verified where applicable. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.

ADDITIONAL INFORMATION

Available Options:

Standard
Active Warming

SPECS & MEASUREMENTS

Specifications coming soon. Contact us for detailed product information.

FREQUENTLY ASKED QUESTIONS

What is the difference between the HELIOS Standard and Active Warming versions?

The HELIOS Standard (MEDTAC0413) is a passive thermal retention system — it uses a two-layer coverage system (bottom sheet and top cover) to insulate the patient and retain body heat without generating additional warmth. The Active Warming version (MEDTAC0414) adds a Medi-Heat air-activated heating pad (9 × 13 inches) that generates active heat for up to 12 hours, making it appropriate for casualties who are already hypothermic or at elevated risk of hypothermic deterioration during prolonged evacuation.

Does the HELIOS System have a military NSN?

Yes. The TacMed™ HELIOS System carries NSN 7210-01-614-5894, confirming its active adoption in U.S. military medical supply chains. It is designed for use in tactical combat casualty care and MEDEVAC scenarios where ultra-compact, mission-proven thermal management is required.

How does the HELIOS System maintain patient access while warming the casualty?

The HELIOS System's modular two-piece design allows providers to maintain complete casualty access during warming. Unlike single-piece sleeping bag systems that require the patient to be repositioned for assessment or intervention, the HELIOS top cover can be opened and reclosed to allow IV access, wound management, airway assessment, and monitoring without removing the thermal system entirely.

What are the blanket anchors on the HELIOS System used for?

The blanket anchors secure the HELIOS System to litter rails and standard military and EMS stretcher systems. They prevent the blanket from being displaced by rotor wash during helicopter MEDEVAC operations or vehicle movement during ground evacuation — a specific design requirement for tactical medical use cases where blanket displacement could compromise patient thermal protection at a critical time.

How long does the Medi-Heat pad in the Active Warming HELIOS last?

The Medi-Heat air-activated heating pad included in the HELIOS Active Warming version generates heat for up to 12 hours once activated by removing it from its sealed oxygen-free packaging. The activation is irreversible, so the pad should only be opened when application to the patient is imminent.
