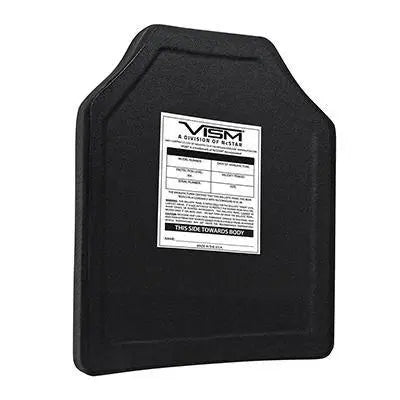

The VISM Level III+ SRT Ceramic/PE Ballistic Plate is a Silicon Carbide ceramic + UHMWPE composite armor plate independently tested to defeat Special Rifle Threat (SRT) Level III+ rounds including steel-core and high-velocity rifle ammunition. Available in 10"×12" (SKU: BP3PC1012, ~4.6 lbs) and 11"×14" (SKU: BP3PC1114, ~5.7 lbs). Designed for front/rear plate carrier use where ceramic defeat capability is required at reduced weight versus solid ceramic plates.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | VISM by NcStar |
| Protection Level | Level III+ SRT (Special Rifle Threat, independently tested) |
| Construction | Silicon Carbide (SiC) ceramic strike face + UHMWPE backer |
| Available Sizes | 10"×12" (BP3PC1012) and 11"×14" (BP3PC1114) |
| Weight (10×12) | ~4.6 lbs (2,087 g) |
| Weight (11×14) | ~5.7 lbs (2,585 g) |
| Threats Rated | Level III+ SRT including steel-core rifle rounds |
| Application | Front/rear plate carrier pockets |
Product Overview
The VISM Level III+ SRT Ceramic/PE Ballistic Plate occupies a critical position in the VISM lineup: it provides Special Rifle Threat ceramic defeat capability — the same mechanism used by military-grade ceramic composite plates — at a price point accessible to law enforcement, armed security, and prepared civilians who need more protection than UHMWPE-only plates provide, but who cannot justify the cost of full NIJ Level IV ceramic systems.
The SiC ceramic/UHMWPE composite architecture delivers its protection through a two-phase defeat mechanism. First, the Silicon Carbide ceramic strike face — a premium armor ceramic with Mohs hardness approximately 9.5 — fractures and disrupts the incoming projectile core on contact. For steel-core penetrators (M855 Green Tip, 7.62×39mm MSC, etc.), this ceramic defeat stage is essential: pure UHMWPE plates cannot reliably defeat hardened steel penetrators because the PE fibers lack sufficient hardness to stop the core from drilling through. The fractured ceramic transfers the impact energy broadly across the backer, while the UHMWPE backer arrests residual fragment velocity and prevents any penetration.
Compared to solid monolithic ceramic plates (all-alumina or all-SiC), the SiC/UHMWPE composite structure results in a lighter plate — the UHMWPE backer is significantly less dense than a full ceramic structure of equivalent thickness — while maintaining SRT-level protection. At ~4.6 lbs (10"×12"), the SRT ceramic/PE plate is lighter than many alumina-ceramic-only plates of the same size, while delivering superior defeat capability through the SiC strike face.
Where SRT Ceramic/PE Fits in the VISM Lineup
| VISM Plate | Material | Protection | Weight (10×12) |
|---|---|---|---|
| Level III+ Flat (BPC1012) | UHMWPE | Level III+ | ~3.0 lbs |
| SRT Ceramic/PE (BP3PC1012) | SiC Ceramic + UHMWPE | Level III+ SRT | ~4.6 lbs |
| Level IV Ceramic/PE (B4C1012) | Ceramic + PE | Level IV (30-06 AP) | ~5.5 lbs |
Complete your lateral protection with the VISM SRT Ceramic 6"×6" Curved Side Plate (BP3P66C) from the Armor Plates & Panels collection. For complete plate systems, browse Plate Carriers & Tactical Vests and Premium Body Armor Vests & Protection.
All products sourced from the actual brand manufacturer or authorized master distributors. CoTCCC recommendation status verified where applicable. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.
Available Options:
- 10 x 12
- 11 x 14
Specifications coming soon. Contact us for detailed product information.
