PRODUCT INFORMATION

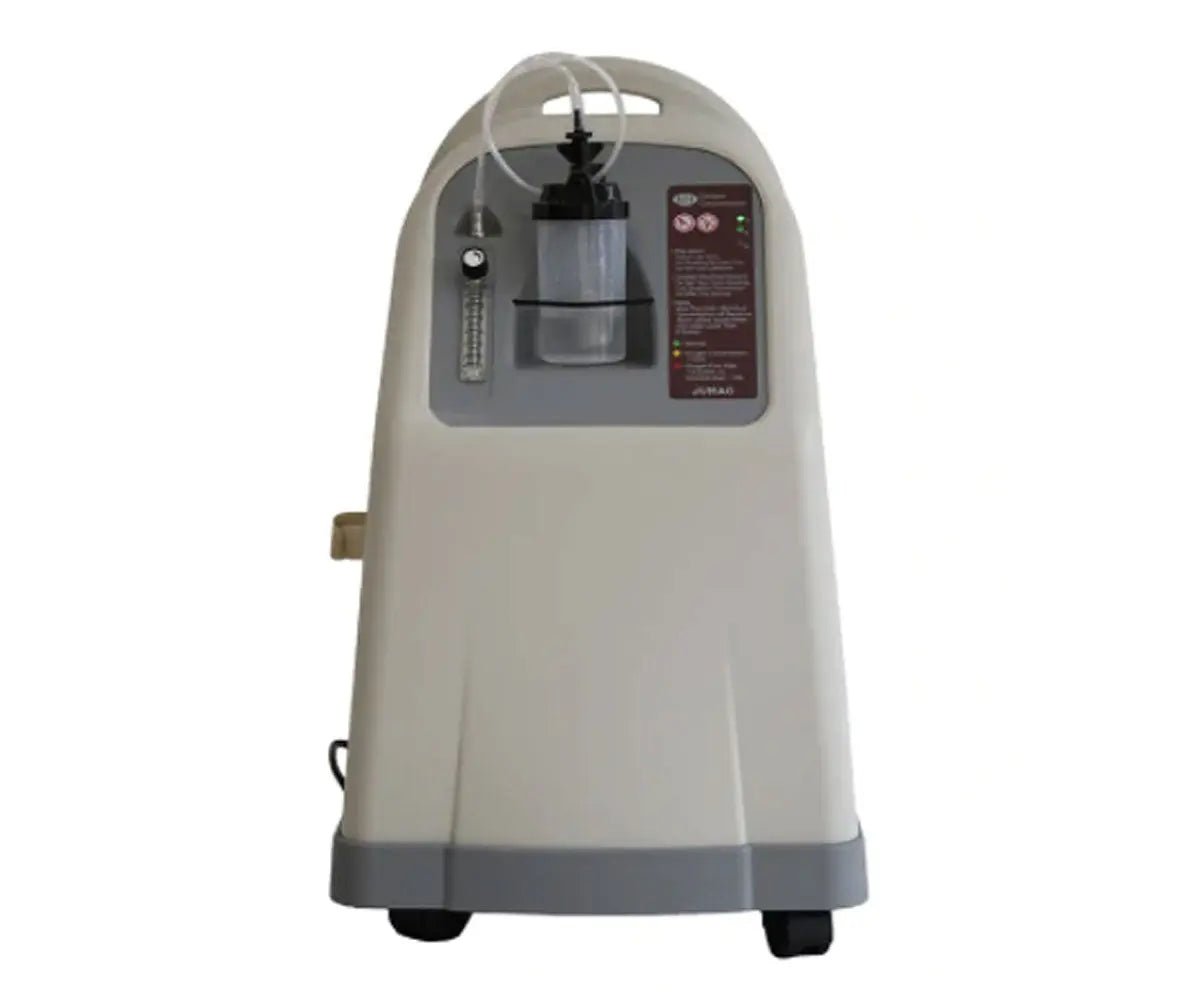

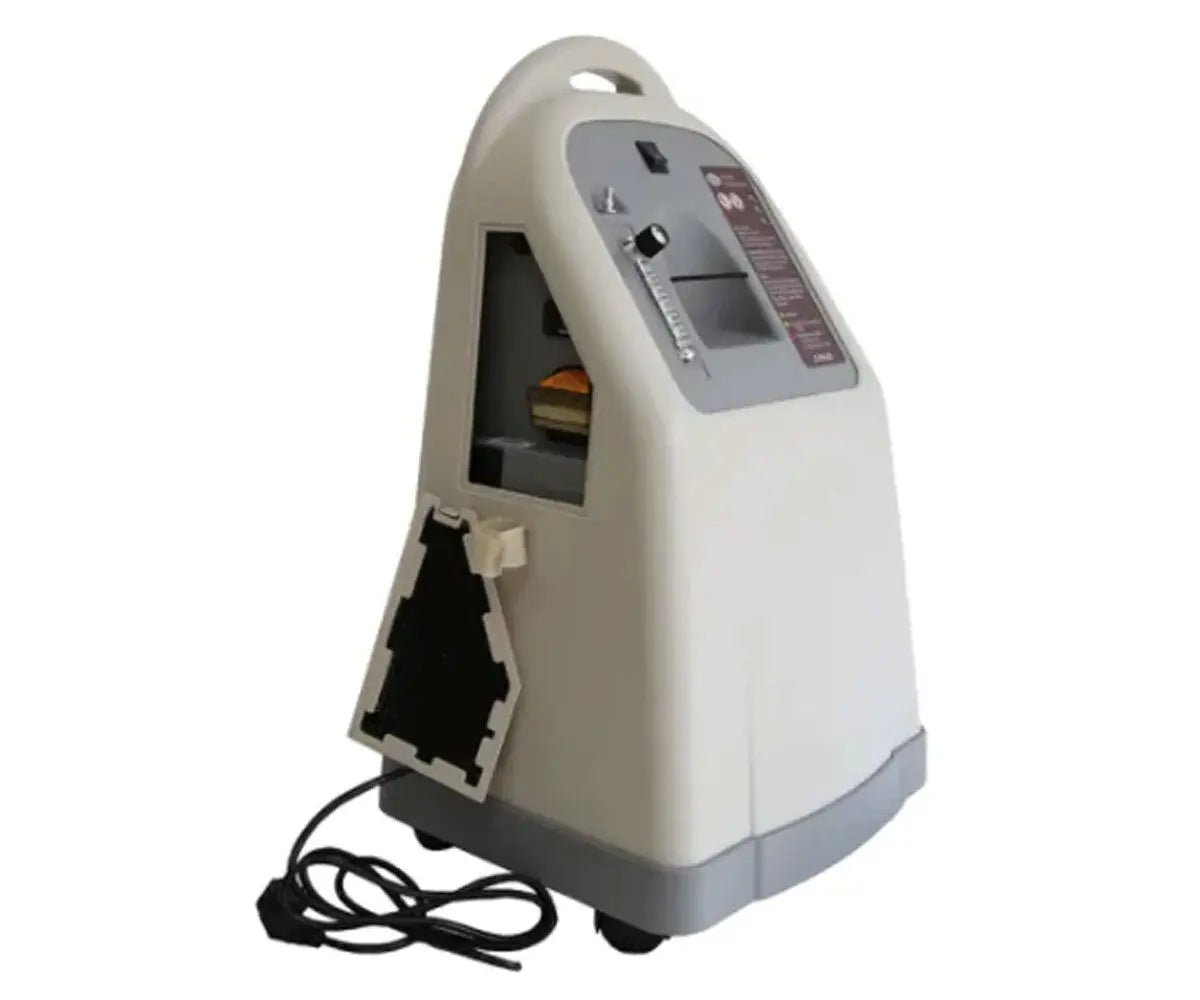

The Jumao JMC9A is a 10-liter-per-minute stationary continuous-flow oxygen concentrator delivering 93% ±3% oxygen purity, rated for 24-hour continuous operation. FDA-cleared, ISO 13485-certified, and CE-marked, it is suited for medical facilities, rural clinics, field hospitals, and home oxygen therapy where cylinder resupply is impractical. Weighs 23 kg (net); rated at 220V–230V, 50/60Hz.
Key Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Jumao Medical (MEDTECH Resource) |
| Model Number | JMC9A |
| SKU | BZX1034967 |
| Flow Rate | Up to 10 L/min continuous flow |
| Oxygen Purity | 93% ±3% (high-purity output) |
| Output Pressure | 58 kPa ±5 kPa |
| Power Supply | 220V–230V, 50/60Hz |
| Net Weight | 23 kg (51 lb) |
| Gross Weight (shipped) | 26 kg |
| Housing Material | ABS plastic |
| Certifications | FDA-cleared, ISO 13485, CE Directive 93/42 |
| Duty Cycle | 24-hour continuous operation rated |
Product Overview
The Jumao JMC9A oxygen concentrator provides a reliable, on-demand source of high-purity supplemental oxygen at flow rates up to 10 liters per minute — the equivalent of a standard non-rebreather mask at full flow, or dual cannula nasal oxygen for two patients simultaneously. Unlike compressed oxygen cylinders, which require periodic resupply and carry finite duration, a concentrator extracts and concentrates oxygen from ambient air continuously as long as electrical power is available.
The JMC9A is FDA-cleared and ISO 13485-certified, making it compliant for use in medical settings — including rural health clinics, field hospitals, disaster response stations, and extended-care facilities in regions where medical-grade cylinder oxygen is difficult to obtain or expensive to maintain. The 10 L/min capacity covers the majority of adult supplemental oxygen applications, from low-flow nasal cannula (1–4 L/min) through high-flow non-rebreather mask delivery (10–15 L/min with the unit at maximum output).
Rated for 24-hour continuous operation, the JMC9A is appropriate for institutional deployment where oxygen demand is ongoing. The ABS housing and internal PSA (Pressure Swing Adsorption) molecular sieve technology require standard filter cleaning and periodic sieve replacement at manufacturer-specified intervals. A voltage converter or transformer will be required for 110V/60Hz North American electrical systems, as this unit is rated for 220V–230V operation.
Power Note: This unit is rated for 220V–230V electrical systems. North American users operating on 110V/60Hz will require a step-up voltage converter or transformer (sold separately). Verify your facility's electrical supply before ordering.
See also: EMS Bags & Backpacks | IFAK Kits & First Aid
All products sourced from the actual brand manufacturer or authorized master distributors. CoTCCC recommendation status verified where applicable. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.
