X8T™ Tactical Tourniquet - Rapid Hemorrhage Control with One-Handed Operation

X8T™ Tactical Tourniquet - Rapid Hemorrhage Control with One - Handed Operation - RCR Medical

1 / 5

X8T™ Tactical Tourniquet - Rapid Hemorrhage Control with One-Handed Operation

Name: X8T™ Tactical Tourniquet - Rapid Hemorrhage Control with One-Handed Operation
Brand: RCR Medical
SKU: RCR-X8T-T2G
Price: 43.0 CAD
Availability: InStock

Your Price: $43.00

Color: Black

🚚 Free Shipping $100+ ↩️ 30-Day Returns

🎖️ Veteran Owned

🔒 Secure 💳 HSA/FSA 🏛️ Gov/LE 📦 APO/FPO

SKU: RCR-X8T-T2G

Type: Tourniquet

Vendor: RCR Medical

$43.00

PRODUCT INFORMATION

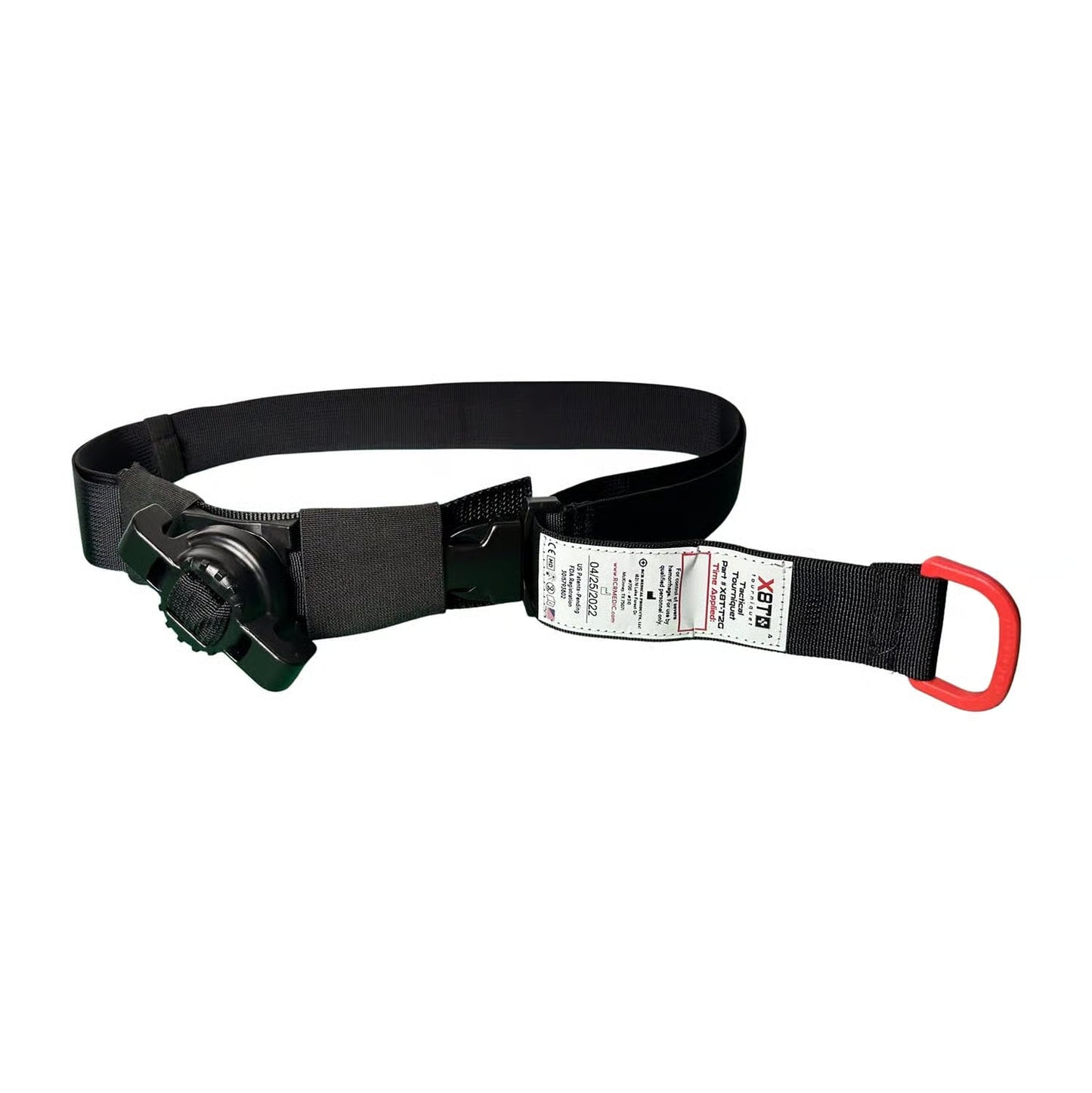

The RCR Medical X8T™ Tactical Tourniquet is a 1.5-inch military-grade nylon tourniquet featuring the patented Maximum Efficiency Dial (MED) — a self-securing rotary mechanism enabling precise, incremental tightening and controlled release with one hand in as little as 8 seconds. Rated 500 lb tensile strength. Effective on limbs from pediatric to large adult. Made in the USA. Available in Black (tactical), Blue (training), and Orange (emergency/public access).

Key Specifications

Specification	Detail
Manufacturer	RCR Medical (USA)
SKU (Black)	RCR-X8T-T2G
SKU (Blue)	RCR-X8T-P2G
SKU (Orange)	RCR-X8T-E2G
Tightening Mechanism	Patented Maximum Efficiency Dial (MED) — self-securing rotary dial
Strap Width	1.5 inches
Strap Material	Military-grade nylon, 500 lb tensile strength
One-Handed Application	Yes — full application achievable in ~8 seconds with one hand
Quick-Release Buckle	Yes — for fast access in trapped-limb scenarios
Glove Compatible	Yes
Limb Size Range	Pediatric to large adult
Weight	6 oz
Origin	Made in the USA

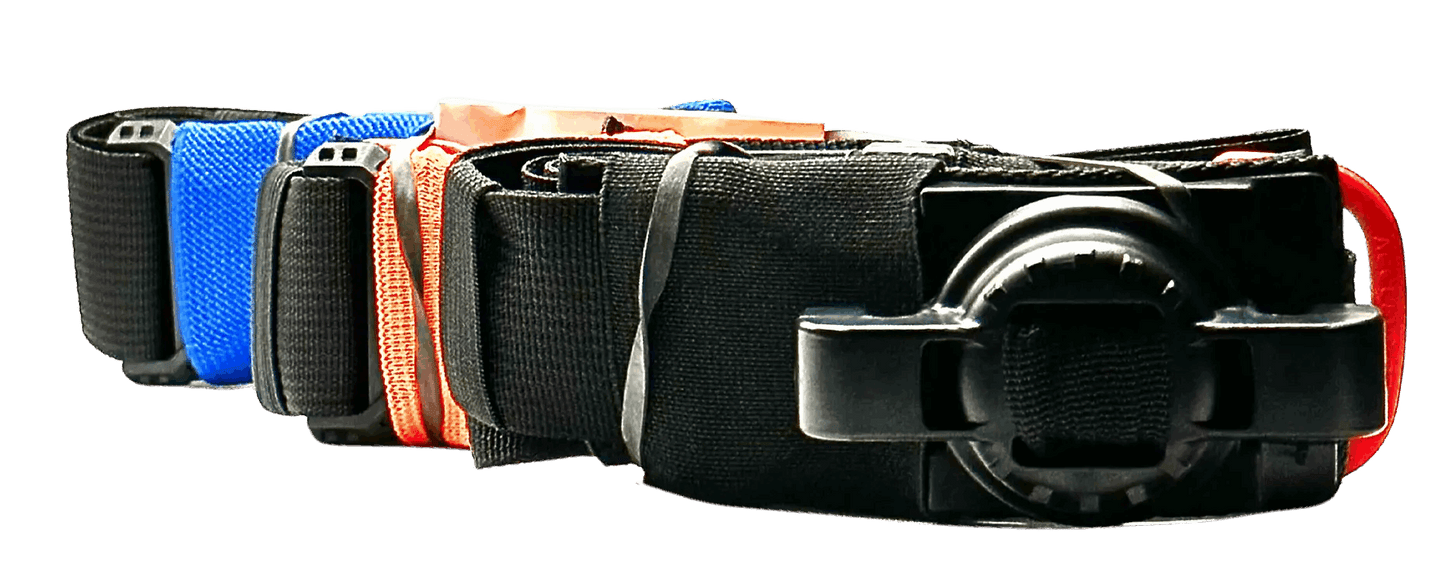

Colors	Black (tactical), Blue (training/practice), Orange (public/emergency access)

Product Overview

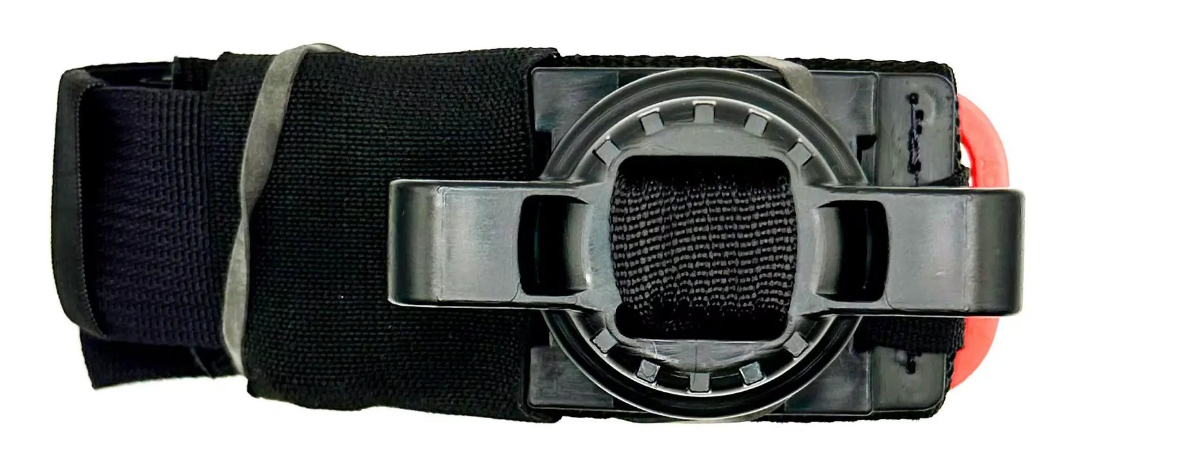

Tourniquet design has advanced considerably since the windlass-based Combat Application Tourniquet (C-A-T®) and SAM XT became the dominant CoTCCC-recommended options. The X8T™ from RCR Medical represents a distinct mechanical approach: instead of a windlass rod that requires wrapping and locking, the X8T uses a patented rotary dial — the Maximum Efficiency Dial (MED) — that the operator turns with their thumb and forefinger to progressively cinch the strap to occlusion pressure.

The MED system is self-securing: the dial ratchets into each position as it is turned, requiring active release to loosen — preventing the accidental unwinding that can occur with poorly secured windlass bars. This incremental control allows the operator to dial pressure up or down precisely, which is relevant in managed care settings where the tourniquet needs controlled loosening during reassessment. The quick-release buckle on the strap enables rapid removal in trapped-limb casualty situations where the tourniquet must be released rather than cut.

At 6 oz and 1.5 inches wide, the X8T sits in the same weight and width class as the C-A-T® Gen 7 and SAM XT — compatible with standard tourniquet pouches and IFAK holders designed for these industry-standard dimensions. The 500 lb tensile strength strap ensures the tourniquet withstands the high forces generated during maximum occlusion application, particularly on large-circumference thigh applications where windlass or dial mechanisms must overcome significant tissue pressure.

Color Selection Guide

Black (RCR-X8T-T2G): Tactical use — for operators, law enforcement, and military personnel carrying in an IFAK or on body armor. Low visibility, standard TCCC operational color.
Blue (RCR-X8T-P2G): Training/practice use — visually distinct from operational tourniquets to prevent training device mix-ups with live tactical kit. Identical mechanism and construction for authentic skill transfer.
Orange (RCR-X8T-E2G): Public access and emergency response — high-visibility color for bleeding control stations, public access kits, and non-tactical emergency settings.

All products sourced from the actual brand manufacturer or authorized master distributors. CoTCCC recommendation status verified where applicable. Ships from MED-TAC International, Pembroke Pines, FL — clinician-founded, veteran-led, SDVOSB-certified.

ADDITIONAL INFORMATION

Available Options:

Black
Blue
Orange

SPECS & MEASUREMENTS

Specifications coming soon. Contact us for detailed product information.

CLINICAL RATIONALE

Clinical Rationale — X8T Tactical Tourniquet

Why this tool matters clinically

Dial-drive mechanism allows fine, continuous mechanical advantage to reach pulse extinction without overshoot.
Low-profile chassis reduces snag/impact risk versus protruding levers in confined spaces.

Evidence & Training Rationale

Training: steady dial cadence to pulse loss, secure, re-tension after movement, time-mark, and document.

Selected sources:
Deployed Medicine: Tourniquet Skill Cards;
JTS TCCC/CPG library.

FREQUENTLY ASKED QUESTIONS

Is the X8T™ Tactical Tourniquet CoTCCC-recommended?

The X8T™ is not currently on the CoTCCC recommended tourniquet list, which specifically names the C-A-T® Gen 7 and SAM XT as preferred extremity tourniquets for tactical use. However, the X8T™ is a viable tactical tourniquet with a patented MED rotary dial mechanism, 500 lb tensile strength nylon strap, and one-handed application capability — appropriate for training, public access deployment, and scenarios where the primary CoTCCC-recommended tourniquets are unavailable. For military and law enforcement operators following TCCC protocols, CoTCCC-recommended options (C-A-T® Gen 7 or SAM XT) should be the primary choice.

How does the Maximum Efficiency Dial (MED) differ from a standard windlass tourniquet?

A windlass tourniquet (like the C-A-T® Gen 7) uses a rod that is twisted in a loop of strap material to progressively tighten — then locked in a clip. The X8T™ MED is a rotary dial that the operator turns with thumb and forefinger to cinch the strap incrementally. The MED self-secures at each position via ratchet mechanism, preventing accidental unwinding, and allows controlled pressure increase or decrease — useful in managed care settings. Both mechanisms achieve arterial occlusion; the dial approach may be more intuitive for users with limited strength or dexterity.

What is the Blue X8T™ (RCR-X8T-P2G) training variant used for?

The Blue X8T™ is identical in construction, mechanism, and material to the Black tactical variant — but in blue color to visually distinguish it as a training device. This prevents training tourniquets from being mixed with live operational kit, which can create dangerous situations if a training-only device (without full operational inspection) ends up in an IFAK used on a real casualty. Using the blue variant for skills training and repetition builds authentic muscle memory on an identical mechanism without risking confusion with operational black tourniquets.

Can the X8T™ Tourniquet be used on pediatric casualties?

Yes. The X8T™ is designed to accommodate a wide range of limb sizes from pediatric to large adult. The 1.5-inch strap and incremental MED dial allow the operator to tighten to the appropriate occlusion pressure for smaller limb circumferences without over-tightening. For pediatric tourniquet use, proper limb sizing, placement above the wound, and confirmation of pulse elimination distal to the tourniquet are critical — the same principles that apply to all tourniquet applications regardless of device.

How should the X8T™ be staged for rapid one-handed self-application?

For self-application staging, the X8T™ should be pre-looped with the strap at a diameter slightly larger than the intended limb, positioned to be slid onto the affected extremity. The MED dial should be accessible at 12 o'clock when worn. Operator should practice the following sequence until muscle memory is automatic: (1) Slide over the limb 2–3 inches above the wound, (2) pull the strap to snug, (3) engage the quick-release buckle, (4) rotate the MED dial until bleeding stops and distal pulse is absent, (5) note time of application on the dial or casualty card. Regular practice with the Blue training variant is strongly recommended.
